Cable assemblies are essential for ensuring reliable power and data transmission between electronic systems. At APTPCB, we offer high-quality cable assembly services as an integral part of our PCB manufacturing and assembly (PCBA) solutions. Whether for consumer electronics, automotive systems, or industrial machinery, our cable assemblies are designed for efficiency, durability, and top-tier performance.

With APTPCB’s PCBA one-stop service, you get a comprehensive solution that simplifies your supply chain, optimizes component sourcing, and ensures the highest standards of quality throughout the production cycle. Let us handle all aspects of your PCB assembly, including custom cable assemblies, to help you deliver reliable and efficient products for your industry.

We provide high-quality custom cable assembly services, designed to meet the most stringent industry standards and application demands. We understand that a high-quality cable is not merely a physical connection, but a core component for ensuring signal integrity and power efficiency. We offer flexible, scalable solutions that perfectly integrate with your overall PCBA and Box Build Assembly processes. Partnering with us, you will benefit from:

• Integrated Solutions: Enjoy a seamless workflow from PCB Manufacturing and PCBA Assembly to professional cable assembly integration.
• Exceptional Engineering Capabilities: Our experienced engineering team provides end-to-end support from concept to mass production, ensuring cable assemblies perfectly match your PCB/PCBA designs.
• Rigorous Quality Control: We guarantee every custom cable assembly meets the highest standards for performance, durability, and reliability.
• Cost-Effective Optimization: Achieve an optimal balance of production efficiency and cost without compromising the integrity of your cable systems.

Choosing us for your custom cable assemblies provides you with multiple key advantages that directly translate into the superior performance, reliability, and market competitiveness of your products.

• Precision Design: Our engineers focus on impedance matching, crosstalk control, and low attenuation design to ensure lossless transmission of high-speed signals.
• Optimized Materials: We select high-quality conductors and insulation materials to reduce loss and improve power transmission efficiency, complementing your PCBA performance.
• Reduced EMI/RFI: Through effective shielding and grounding designs, electromagnetic interference is minimized, ensuring system stability.

• Robust Construction: We select abrasion-resistant, tensile-resistant, and flex-resistant jacket materials and internal structures to extend cable lifespan.
• Environmental Protection: We offer features such as waterproofing, oil resistance, UV resistance, high/low temperature resistance, and flame retardancy, adapting to various harsh application environments.
• Strain Relief: Precise strain relief design and overmolding at the connector-cable junction prevent breakage.

• Plug-and-Play: Pre-fabricated and tested cable assemblies significantly simplify the final product assembly, reducing labor and time costs.
• Reduced Errors: Standardized production and rigorous testing ensure consistent quality of cable assemblies, lowering assembly error rates and rework needs, accelerating your PCBA final assembly.
• Reduced Inventory Complexity: Through customized integration, the management burden of multiple loose wires and connectors is reduced.

• Custom Lengths & Configurations: We provide precise cable lengths, branching, and connector configurations based on your specific product dimensions and layout, avoiding redundancy and waste.
• Compact Design: Utilizing small-diameter, flat, or hybrid cable designs maximizes the use of limited space, supporting product miniaturization.
• Seamless PCBA Integration: Our cable assemblies perfectly match your PCB design and PCBA on-board connectors, ensuring seamless electrical and mechanical integration.

• Standardized Production: We adhere to strict manufacturing standards and processes (e.g., IPC/WHMA-A-620) to ensure consistency across all cable assembly batches.
• Comprehensive Testing: Every cable assembly undergoes multiple rigorous tests to ensure electrical performance and mechanical integrity.
• Certification Support: UL, CE, RoHS, and other international certification support can be provided as needed, meeting global market access requirements.

• Material & Structure Customization: We offer a variety of conductor, insulation, shielding, and jacket material options, as well as customized internal structures (e.g., number of twisted pairs, fillers).
• Connector Customization: Standard or custom connectors can be provided based on the application, including special pin arrangements, latches, or locking mechanisms.
• Prototyping to Mass Production: We provide professional support throughout the entire process, from engineering consultation in the product concept phase and prototype fabrication to final mass production.

Designing high-quality cable assemblies requires a deep understanding of electrical, mechanical, and material sciences. We follow a rigorous design and pre-production process, ensuring the final product precisely meets your technical specifications and performance expectations, and seamlessly integrates with your PCB design and PCBA manufacturing.

• Electrical Parameters: Clearly define core electrical requirements such as signal type (data, power, RF), voltage, current, frequency, impedance, and bandwidth.
• Mechanical & Environmental Requirements: Determine cable length, minimum bending radius, tensile strength, operating temperature range, waterproof/dustproof rating, oil/chemical resistance, abrasion resistance, flame retardancy, etc.
• Connector Interface: Define the connector types, pin counts, keying, and locking mechanisms required for connection to PCBA or external devices.
• Compliance Standards: Identify all relevant industry standards (e.g., UL, CSA, CE, IPC/WHMA-A-620) and specific customer requirements.

• Conductor & Insulation: Select appropriate conductor materials (bare copper, tinned copper) and insulation materials (PVC, PE, XLPE, PTFE) based on electrical requirements and mechanical flexibility.
• Shielding Design: Determine if shielding is required (braid, foil, copper tape), as well as shielding type and grounding method, to address EMI/RFI.
• Outer Jacket Material: Choose suitable outer jacket materials (PVC, PUR, TPE) based on environmental adaptability (abrasion resistance, oil resistance, flame retardancy, weather resistance).
• Connectors & Terminals: Select connector series and terminal types that meet electrical, mechanical, and environmental requirements.

• Virtual Prototyping: Utilize advanced 3D CAD software to create detailed models of cable assemblies, including internal structure and connectors.
• Performance Simulation: Conduct Signal Integrity (SI), Power Integrity (PI), and EMI simulations to evaluate cable performance at specific frequencies.
• Mechanical Analysis: Simulate conditions such as bending, tension, and vibration to optimize cable structure and ensure mechanical reliability.
• Routing Path Validation: Validate the cable routing path within the overall product 3D model, checking for clearances and interferences with other components (including PCBA).

• First Article Sample Production: Fabricate cable assembly prototypes based on design files.
• Electrical Performance Testing: Conduct electrical parameter tests (continuity, insulation resistance, impedance, attenuation, crosstalk) on prototypes to verify signal and power transmission performance.
• Mechanical Performance Testing: Perform tensile strength, flex life, vibration, high/low temperature shock, and other mechanical and environmental tests.
• PCBA Compatibility Testing: Conduct actual connection tests of cable prototypes with PCBAs to verify physical fit and system functionality.

• Detailed Engineering Drawings: Generate cable assembly engineering drawings containing all dimensions, materials, connectors, and test requirements.
• Complete BOM: Output a Bill of Materials for all components required for the cable assembly, facilitating procurement and production.
• Test Reports & Certification Documents: Provide detailed test reports and necessary compliance certification documents.
• Version Management: Strictly manage design changes and version iterations to ensure production traceability.

Cable assembly manufacturing is a highly specialized, precise, and detail-oriented process. We employ advanced equipment and strict production processes to ensure every cable assembly meets the highest standards of quality and reliability, complementing our PCBA manufacturing capabilities.

• Automated Cutting: High-precision automatic cutting machines are used to cut wires to exact lengths, ensuring dimensional consistency.
• Automated Stripping: Automatic equipment precisely strips the outer jacket and conductor insulation, preventing damage to the conductors.
• Twisting & Pre-treatment: Multi-strand wires are twisted, or necessary pre-treatment (such as tinning) is performed to improve solderability and connection reliability.

• Automated Crimping: High-precision crimping machines are used to accurately crimp terminals onto wires, ensuring reliable electrical and mechanical connections, with regular pull-force testing for verification.
• Precision Soldering: For connectors or terminals requiring soldering, IPC-certified professional solderers perform fine soldering to ensure robust and reliable solder joints.
• Dedicated Tools: Specialized connector assembly tools and fixtures are used to ensure correct contact insertion, seating, and precise connector assembly.

• Multi-core Cable Integration: Inner core wires are twisted, shielded, filled, or wrapped according to design requirements to form the cable's core structure.
• Jacket Extrusion or Wrapping: The cable's outer jacket is formed by extrusion or wrapping according to design requirements.
• Branching & Fan-out: Cable branching or fan-out processing is performed for complex application needs.

• Shielding Application: Braids, foils, or other shielding layers are accurately applied to provide excellent EMI/RFI protection.
• External Protection: Protective tubing, braided sleeving, corrugated tubing, or tape wrapping is installed to enhance abrasion resistance, cut resistance, and environmental protection.
• Overmolding: Precision overmolding at the connector-cable junction provides excellent strain relief, waterproofing/dustproofing, and aesthetic appeal.

• Permanent Identification: Laser engraving, heat-shrink labels, adhesive labels, or color codes are applied to clearly mark cable model, length, batch, and function.
• Traceability: Ensure every cable assembly has complete traceability, facilitating quality management and after-sales service.

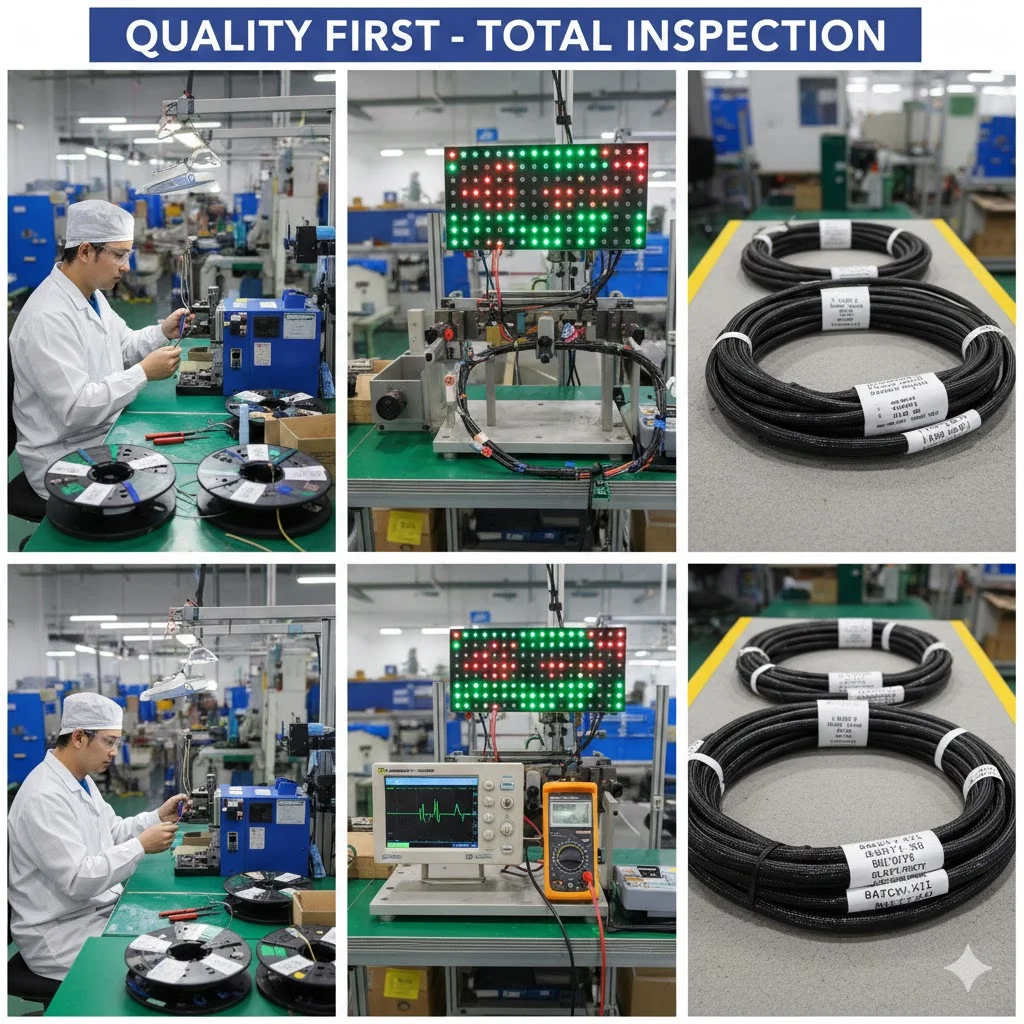

Our commitment to quality extends through comprehensive testing, often integrated with PCBA testing protocols, ensuring every cable assembly is fully functional and highly reliable:

• 100% Continuity Testing: Automated test equipment verifies the electrical continuity, opens, shorts, and miswires of all conductors.
• Insulation Resistance Testing: Measures insulation resistance between conductors and between conductors and shields to ensure no leakage risk.
• Dielectric Withstanding Voltage (Hi-Pot) Testing: High-voltage testing of cables verifies insulation reliability under high voltage.
• Impedance, Attenuation, Crosstalk Testing: For high-speed data cables, equipment like TDR (Time Domain Reflectometer) is used to test impedance, attenuation, and crosstalk, ensuring signal integrity.
• Pull Force Testing: Random samples are subjected to terminal pull force tests to verify the mechanical strength of crimp/solder connections.
• Flex Life Testing: Cyclic bending tests are performed on specific application cables to evaluate their flexibility and fatigue life.
• Environmental Testing: High/low temperature storage/operation, humidity, vibration, and other environmental tests are conducted as needed, simulating actual use conditions.
• Functional Testing: Cable assemblies are connected to PCBAs or actual devices for system-level functional testing, ensuring compatibility and performance in real-world scenarios.

When your products demand exceptional quality, performance, and reliability from cable assemblies, we are your ideal integrated manufacturing partner. With deep experience in PCB Manufacturing, PCBA Assembly, and sophisticated interconnect solutions, we are dedicated to excellence throughout your entire electronic product lifecycle.

By choosing us, you will ensure your custom cable assembly needs are met with:

• Expert Engineering Design: Providing tailored solutions from concept to reality, built upon our extensive PCBA design expertise.
• Advanced Manufacturing Capabilities: State-of-the-art equipment and processes, aligned with our high standards for PCB fabrication.
• Rigorous Quality Control: Comprehensive testing and inspection procedures, integrated with our PCBA testing protocols, ensuring perfect performance.
• Cross-Industry Experience: Proven expertise in the most demanding sectors, including telecommunications, consumer electronics, industrial automation, medical, and automotive.
• Competitive Pricing: Cost-effective solutions without compromising the critical quality or reliability of your cables.
• Responsive Customer Support: A dedicated team committed to assisting you throughout the project lifecycle, from initial PCB prototyping to final product delivery.

Partner with us to achieve superior electrical connectivity, enhanced reliability, and streamlined production for your next-generation electronic products. Contact us today to discuss your specific custom cable assembly requirements.
